Introduction to hydrogen:

Hydrogen is a colorless, odorless and nontoxic diatomic gas molecule. In recent decades, international and domestic medical experts have made a lot of research achievements in hydrogen medicine for health care. For example, it is widely recognized that hydrogen has selective antioxidant effect and improves human free radicals. At the same time, hydrogen was used as food additive by the state in 2015. Gb31633-2014 - national standard for food safety hydrogen as food additive fully explains its safety.

Disclaimer:

As a manufacturer, our hydrogen generator is safe and reliable in quality. However, the buyer is expected to fully understand the relevant knowledge of hydrogen. This product is not a medical device, and we do not promise that it can equal the drug efficacy of related diseases. On the basis of the buyer's voluntary purchase, we, as the manufacturer, will not bear any economic and legal responsibility for any injury caused to human body during the use of the instrument.

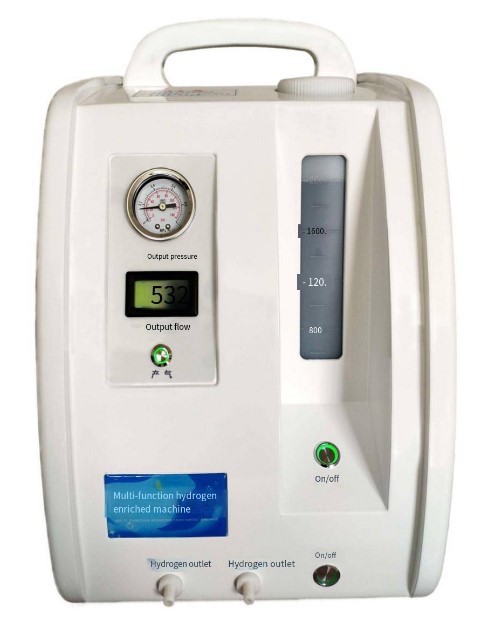

1. Instrument picture

2. Working principle of multifunctional hydrogen enrichment machine

The multi-functional hydrogen enrichment machine uses SPE technology to send the purified water or secondary distilled water (Wahaha Purified water or 4.5L Yibao purified water is recommended) that meets the requirements into the anode chamber of the electrolytic cell. After power on, the water is immediately stripped of electrons at the anode and e decomposes (2h2o-4e=o2 ↑ +4h+), generating hydrogen ions and oxygen, and the oxygen is discharged from the anode. Hydrogen ions in the form of hydrated ions (h3o+) reach the cathode through SPE ion membrane under the action of electric field force, absorb electrons to form hydrogen (H2), which is discharged from the cathode chamber and enters the gas-water separator to generate wet high concentration hydrogen. After quantum treatment, hydrogen that feels more comfortable to breathe is obtained.

The full name of SPE hydrogen production technology is hydrogen production by electrolysis of water with solid polymer electrolyte. The core is the solid polymer electrolyte electrolytic cell, which is composed of membrane titanium alloy components sealed components. The membrane module is the core component of the electrolytic cell, which determines the performance of the electrolytic cell and ensures the high purity, stable pressure, safety and sustainability of hydrogen output from the multi-functional hydrogen enrichment machine.

3. Technical parameters

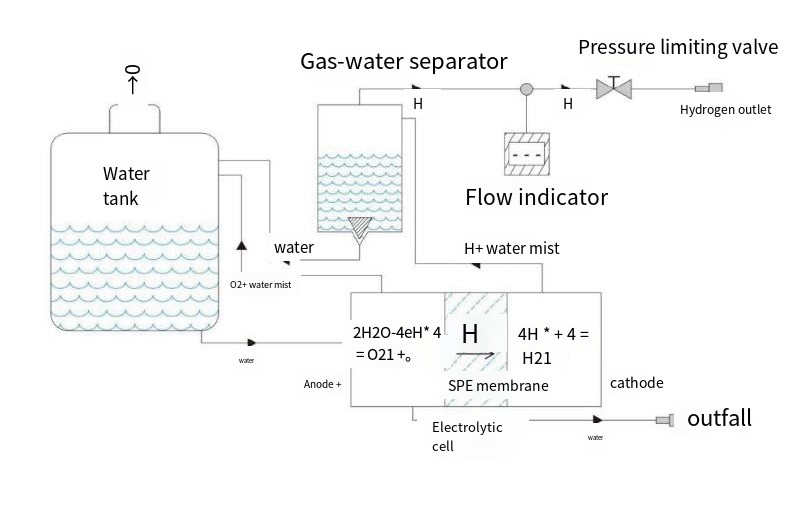

Schematic diagram

4. Method of use

1. Please add deionized water or secondary distilled water when opening the bucket cover. The storage volume should be kept between 1600ml and 2000ml.

2. Before starting up, please pull out the drain pipe to drain a small amount of water, which is used to discharge the air in the pipe and ensure that the water path of the electrolytic cell is unblocked.

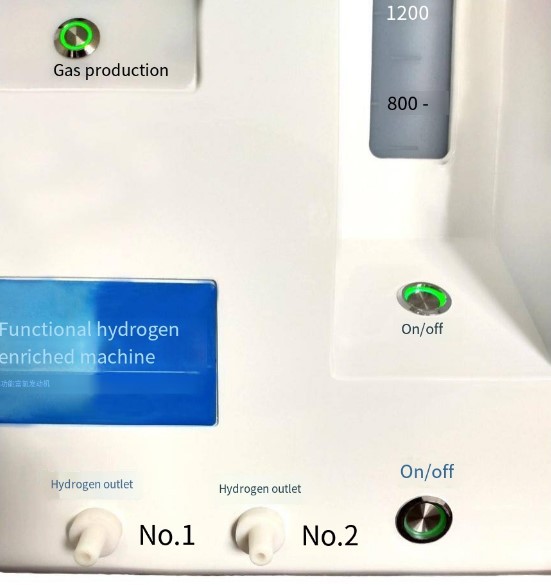

3. Turn on the multi-functional hydrogen enrichment machine, the No. 1 switch starts to produce gas and the two air outlets simultaneously (the gas output of each air outlet is 265), turn on the No. 2 switch, the No. 1 air outlet (530), and insert the attached nasal straw into the hydrogen outlet of the front panel to breathe hydrogen or produce hydrogen rich water.

4. Cut off the bifurcated part of the nasal straw with scissors and change it into a hydrogen guide tube with one end in and one end out. Put the hydrogen guide tube into a water cup and let the hydrogen bubble in the water for 5-10 minutes to produce hydrogen rich water with a content of about 800-1200ppb.

5. The water tank should be kept clean. Clean the water tank once every 3 months and add new purified water.

5.Precautions for multifunctional hydrogen enrichment machine

1. It is strictly forbidden to use in the place with open fire nearby.

2. Ventilation conditions are good.

3. It is strictly forbidden to use water other than those specified for the working water of the multi-functional hydrogen enrichment machine, such as tap water and mineral water.

4. Do not dismantle the electrolytic cell at will.

6. Daily maintenance and troubleshooting of multifunctional hydrogen enrichment machine

7.Application of hydrogen

Hydrogen is one of the smallest and strongest antioxidants in nature so far.

Let's talk about the harm of oxidation first. 98% of the oxygen inhaled by the human body can be absorbed, converted and utilized, and the remaining 2% can generate reactive oxygen radicals with strong destructive power. At the same time, smog, computer radiation, solar UV, dust in the air, staying up late, etc. will produce reactive oxygen species in the body. The reactive oxygen species accumulated in the body is the cause of human aging and become the cause of various diseases. Hydrogen molecule has extremely strong permeability, selective antioxidant effect, and non-toxic, colorless and tasteless. When the human body is supplemented with hydrogen molecules, it can neutralize reactive oxygen radicals and generate water to be discharged from the body, which is safe and effective.

A large number of studies have shown that hydrogen molecules can play a role in the treatment and improvement of brain, spinal cord and other tissue and organ injuries, as well as more than 160 diseases such as diabetes, arteriosclerosis, malignant tumors, cardiovascular and cerebrovascular diseases. In general, hydrogen molecule has the following characteristics: ① it has the activity of selectively scavenging toxic free radicals and antioxidant damage; ② It has excellent tissue diffusion ability that other drug molecules do not have; ③ It has a wide range of preventive, therapeutic or health care effects on a variety of injuries; ④ Hydrogen molecules can be flexibly combined with other prevention and control techniques; ⑤ The use of hydrogen molecular products is very safe, simple and convenient.

Parts display
