1. Product Introduction

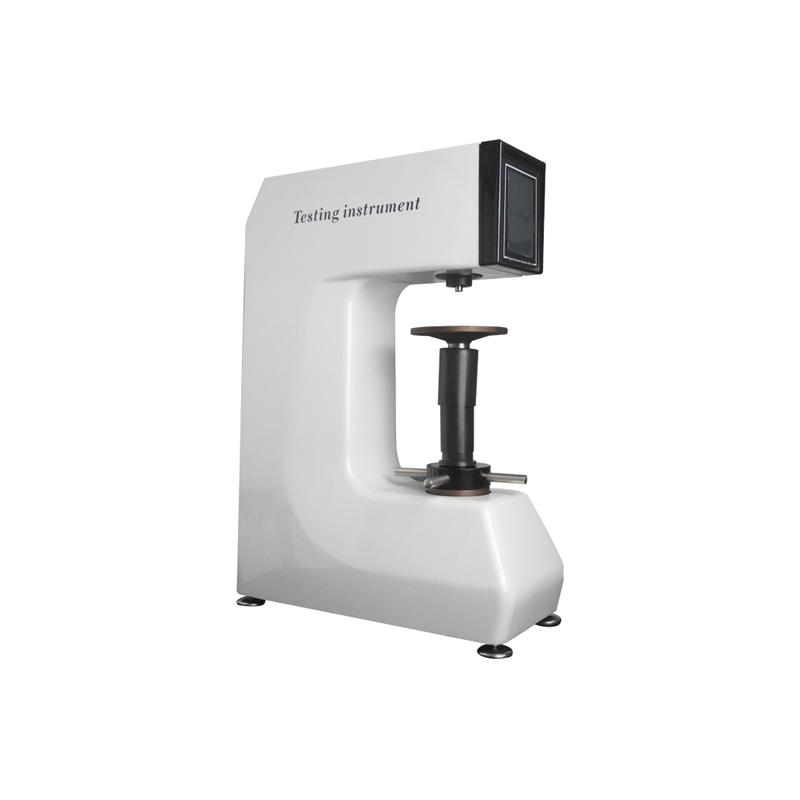

The HRSS-150T digital full Rockwell hardness tester is a multifunctional hardness tester that integrates Rockwell, surface Rockwell, and plastic Rockwell. It adopts an 8-inch touch screen and high-speed ARM processor, with intuitive display, user-friendly human-machine interaction, and easy operation.


2. Product Features

1) The body is made of high-quality cast iron and cast in one go, combined with automotive paint treatment technology, resulting in a round and beautiful appearance;

2) The measuring device adopts a grating displacement sensor, which displays the results through the LCD screen and can display and set the test scale, test force, pressure head type, holding time, conversion unit, etc;

3) The electronic closed-loop control applies test force, fully realizing the automated operation of automatic loading, holding, and unloading of the test force

4) Built in testing software can correct the hardness value of the machine;

5) Convenient control system that can automatically convert units of full hardness scales;

6) Built in printer and can output data through RS232 port;

7) The accuracy complies with GB/T230.2-2018, ISO6508-2, and American ASTM E18 standards.


3. Parameter Specifications


ModelHRSS-150T
Initial test force98.07N(10kgf)
Total test force588.4N(60kgf)、980.7N(100kgf)、1471N(150kgf)、147.1N(15kgf)、294.2N(30kgf)、441.3N(45kgf)
Measuring range20-95HRA、10-100HRBW、20-70HRC;70-94HR15N、67-93HR15TW;42-86HR30N、29-82HR30TW;20-77HR45N、10-72HR45TW;70-100HREW、50-115HRLW;50-115HRMW、50-115HRRW;
Maximum allowable height of the sample210mm
Distance from the center of the pressure head to the machine wall165mm
Hardness resolution0.1HR
Printing methodBuilt-in printer
External dimensions510*290*730 (mm)
Weight95kg
